Nested House V1.12

Nested House V1.12 is a small residential conversion in Hackney, London, developed from a single digital three-dimensional model used as the source of all project information. The site is an existing 60 sqm maisonette terrace conversion distributed over three floors in the heart of the de Beauvoir conservation area.

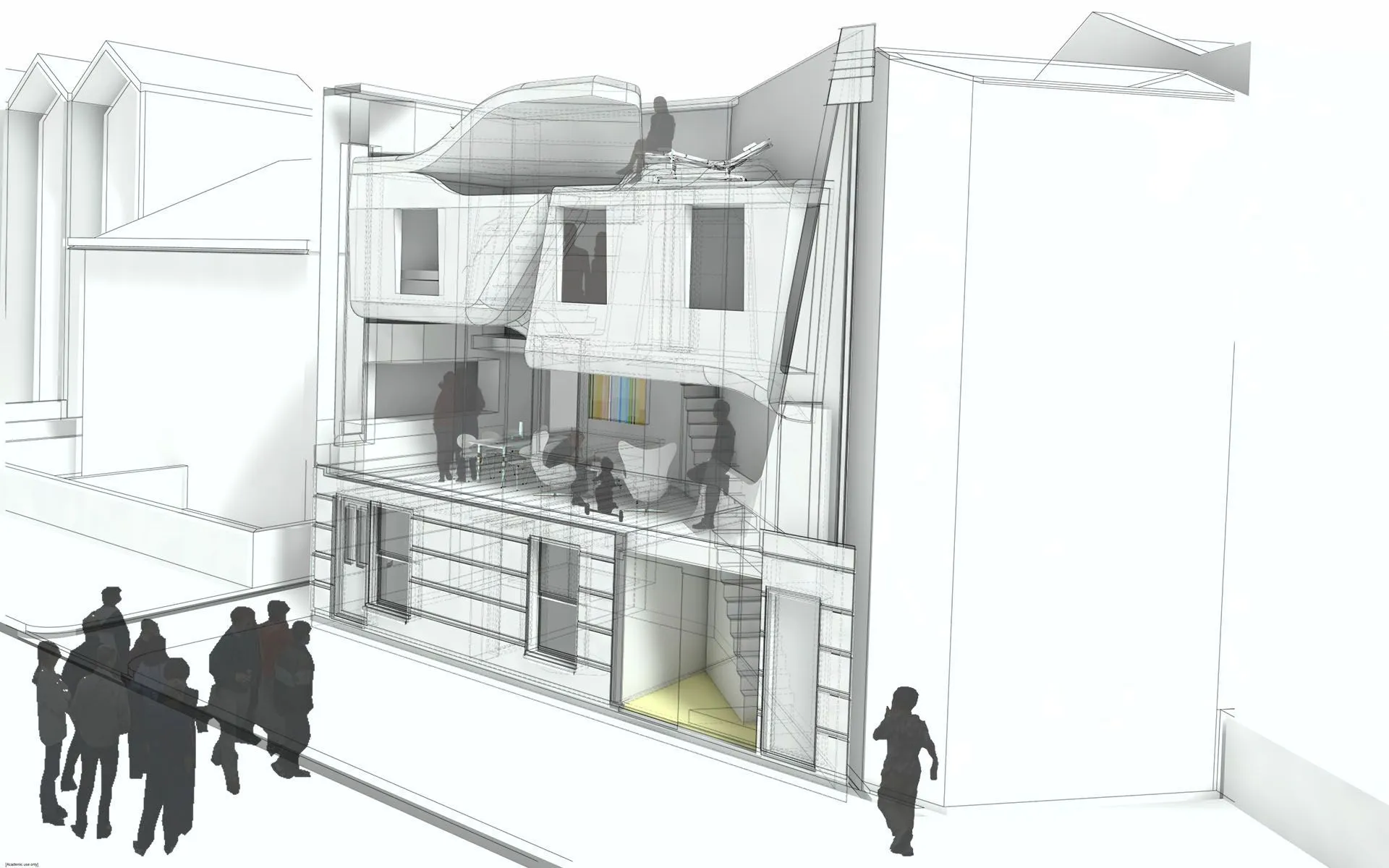

Because of the restrictions of the conservation area, the design deliberately concentrates on the reorganisation of the interior and its relationship to a split-level roof garden. The external treatment only hints at the less orthodox spatial arrangement inside, where a new CNC-fabricated timber structure is inserted into the old terrace shell.

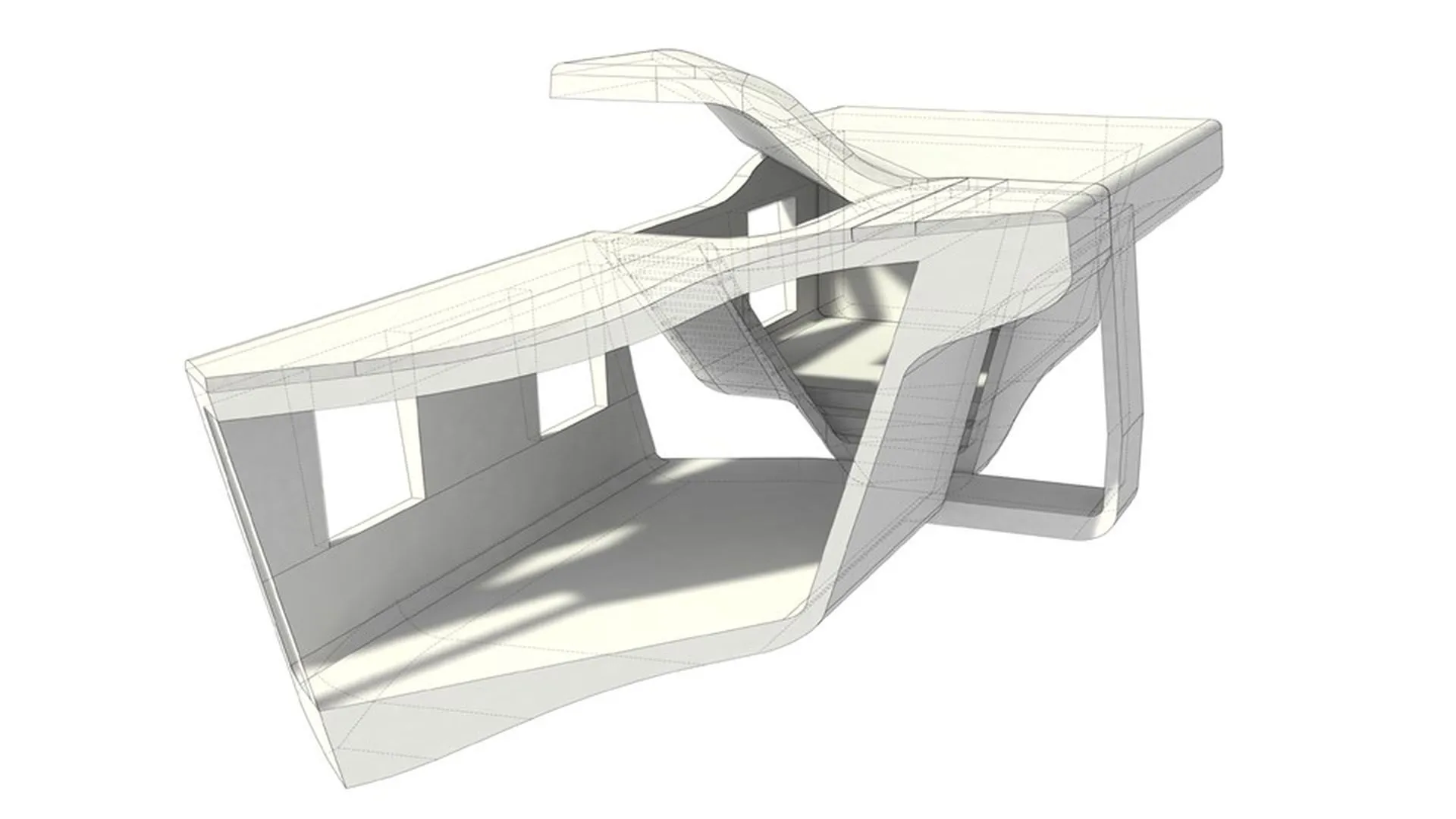

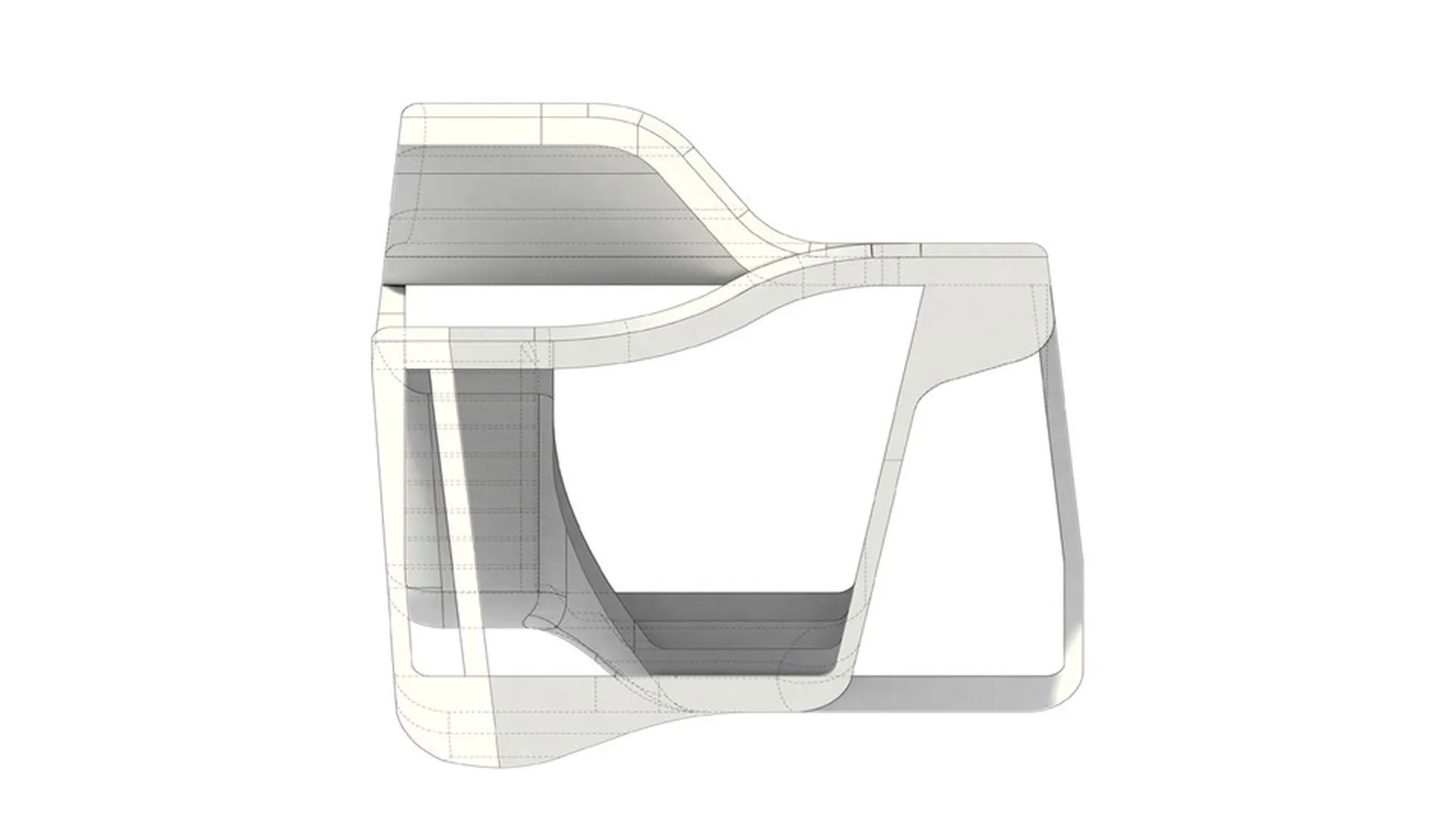

The project is fabricated from a series of 5-layer laminated 18 mm plywood ribs, cut using CNC technology and fitted within the existing building. A steel frame holds back the external walls, allowing the timber sectional objects to define the new interior organisation.

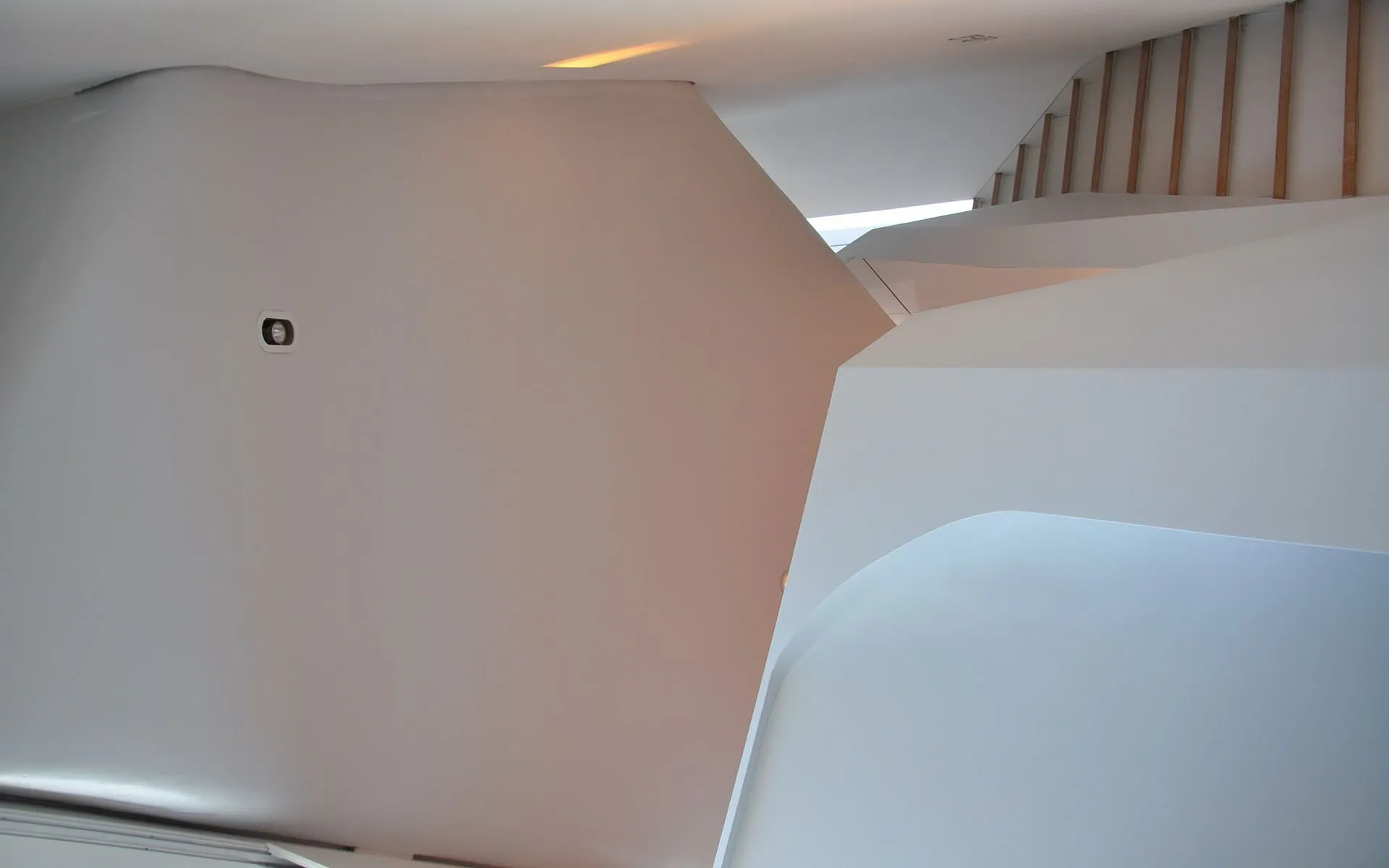

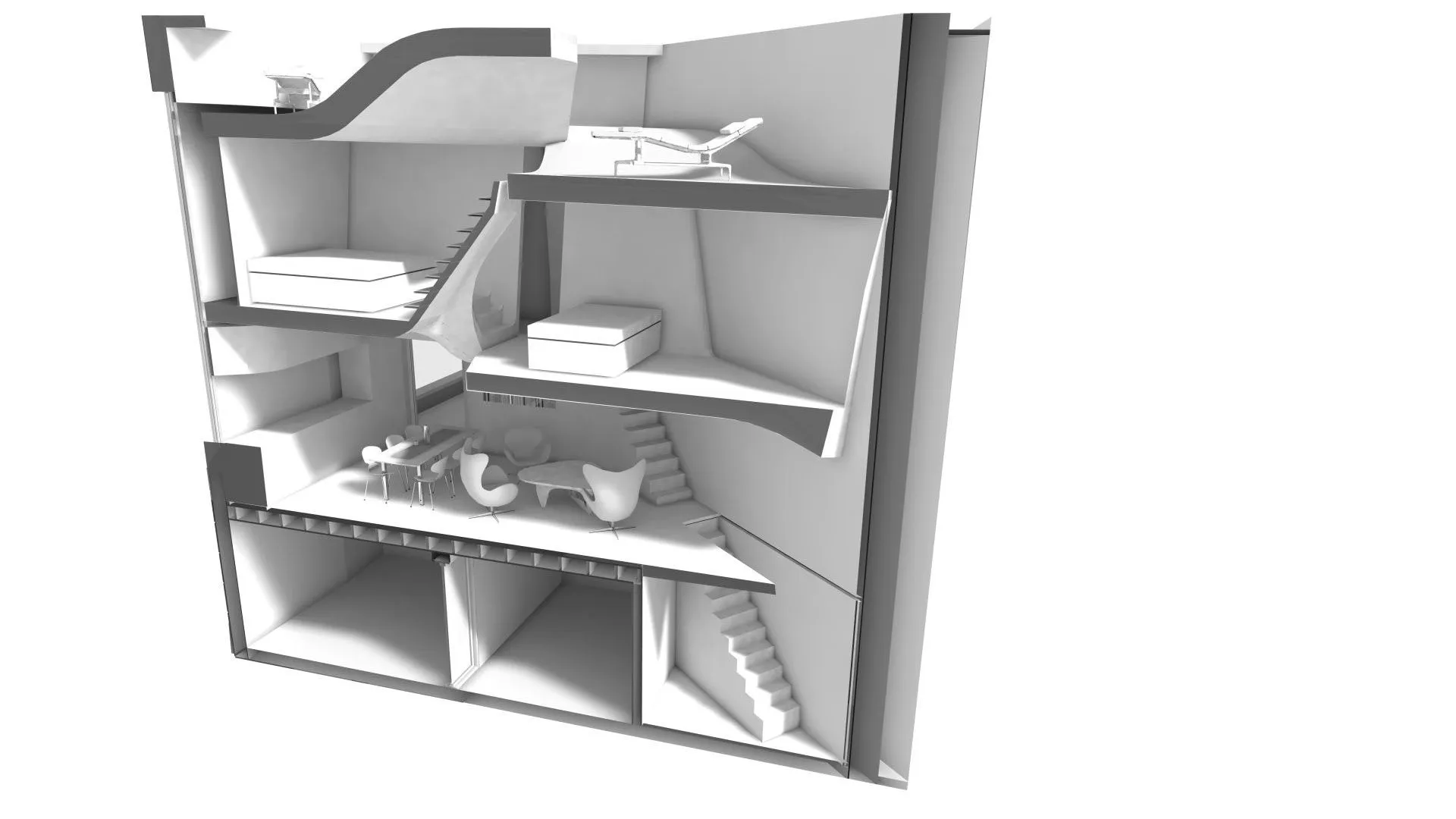

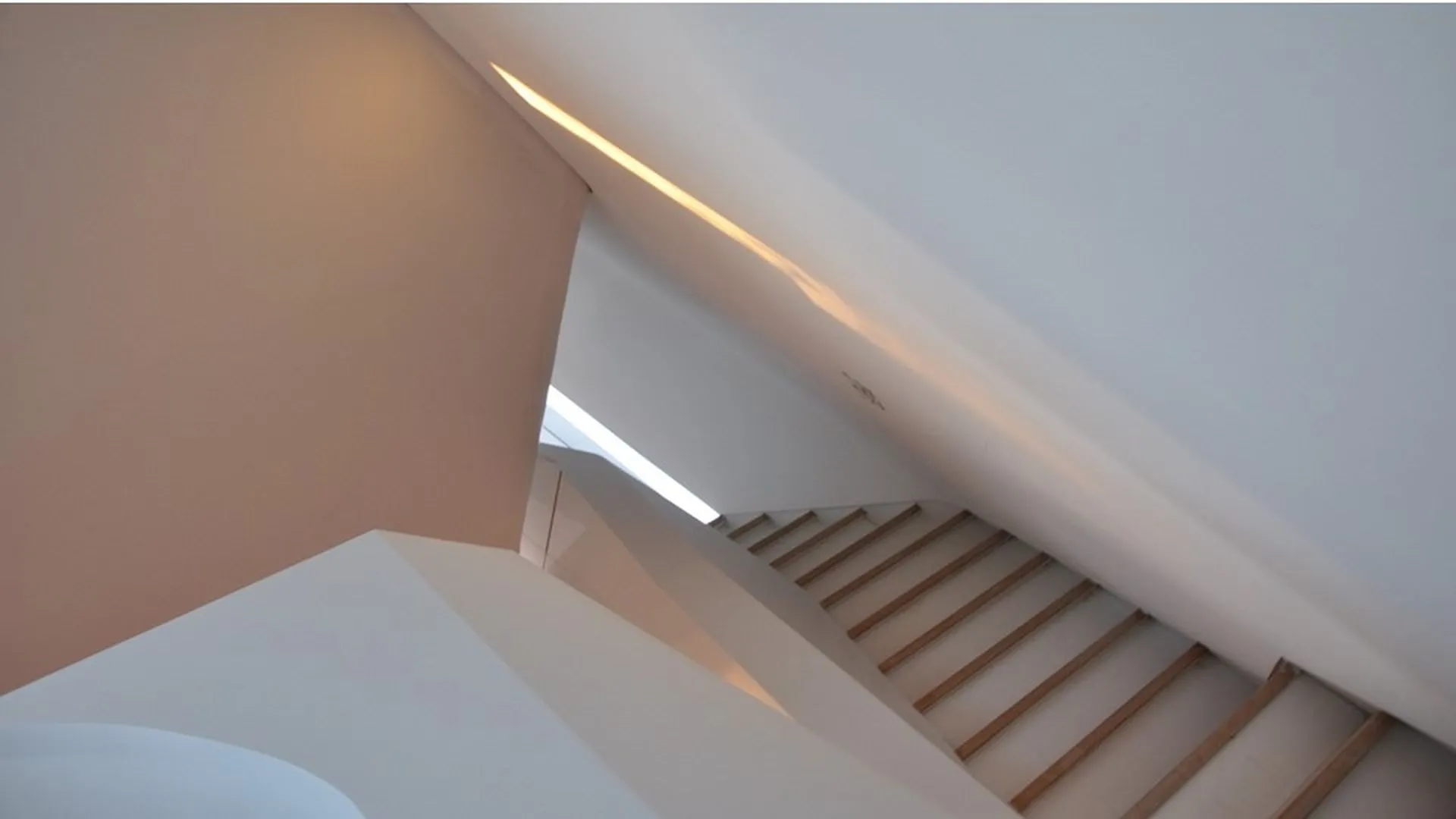

The sectional objects are related to one another as a continuous inhabited system. Their tops form a singular split-level roof terrace, while below they organise bedrooms, storage, circulation and compact living spaces. The roof garden creates two distinct outdoor conditions: one lower, more intimate garden room, and one higher terrace with open views towards the skyline of London.

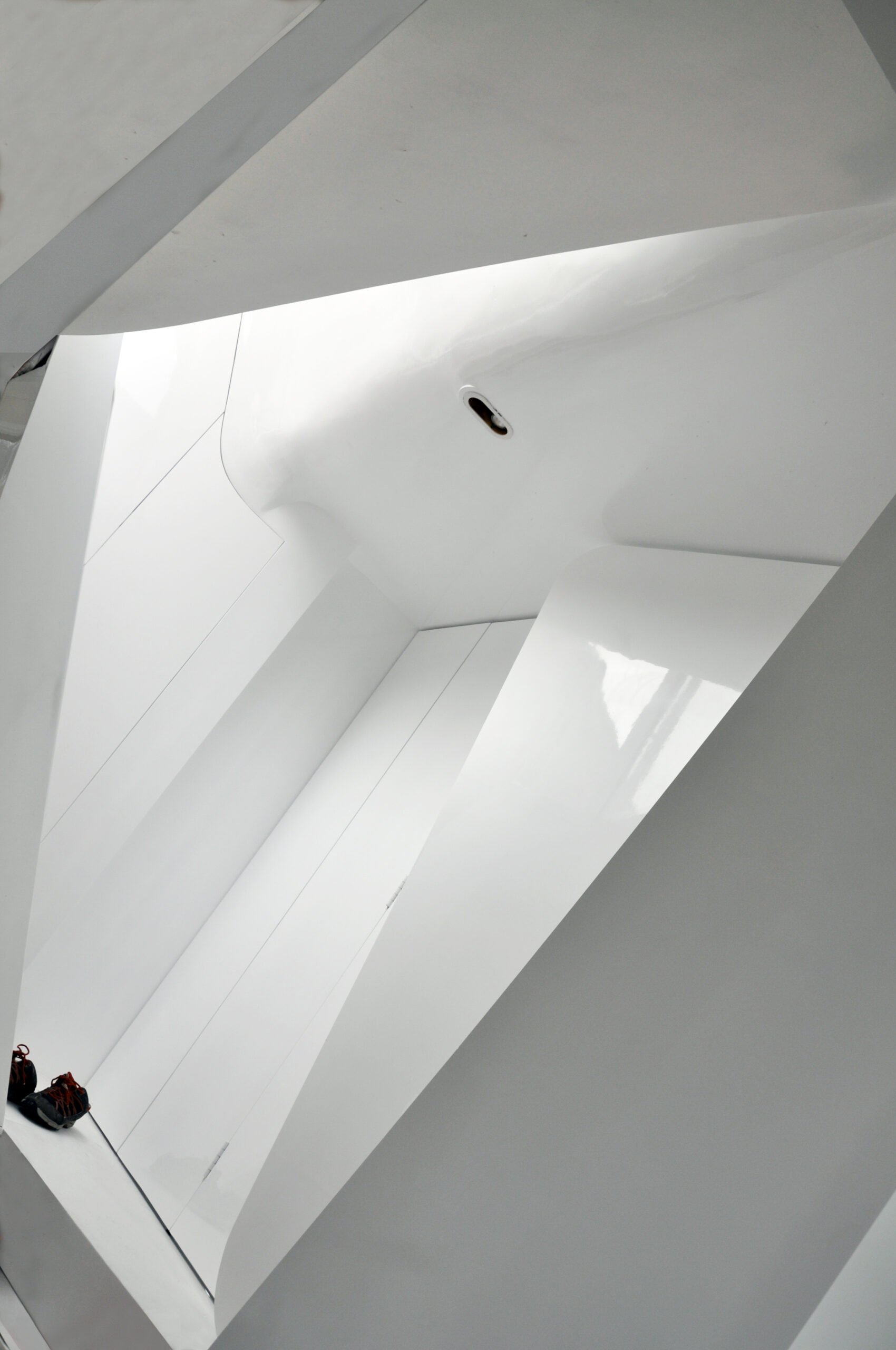

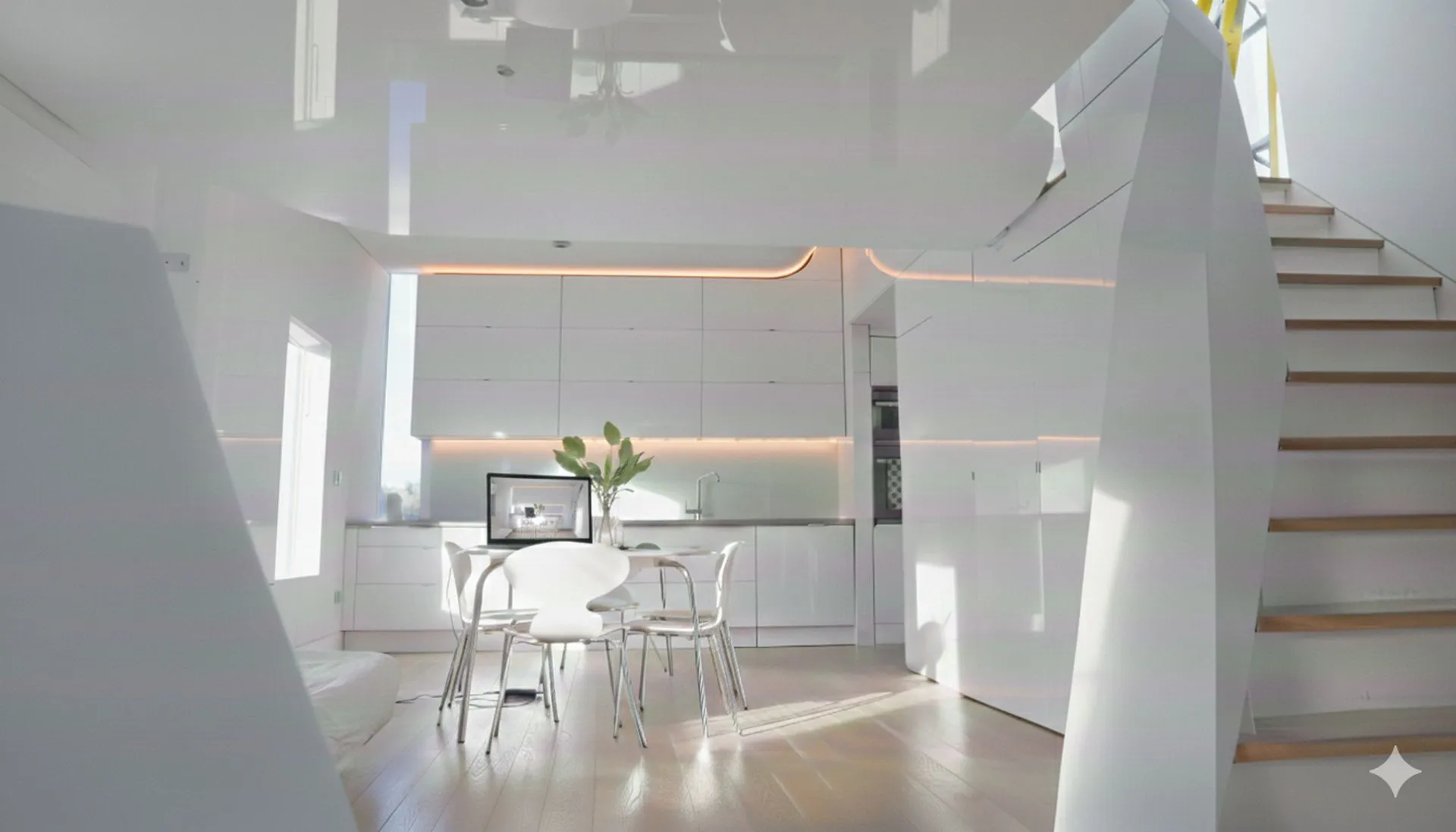

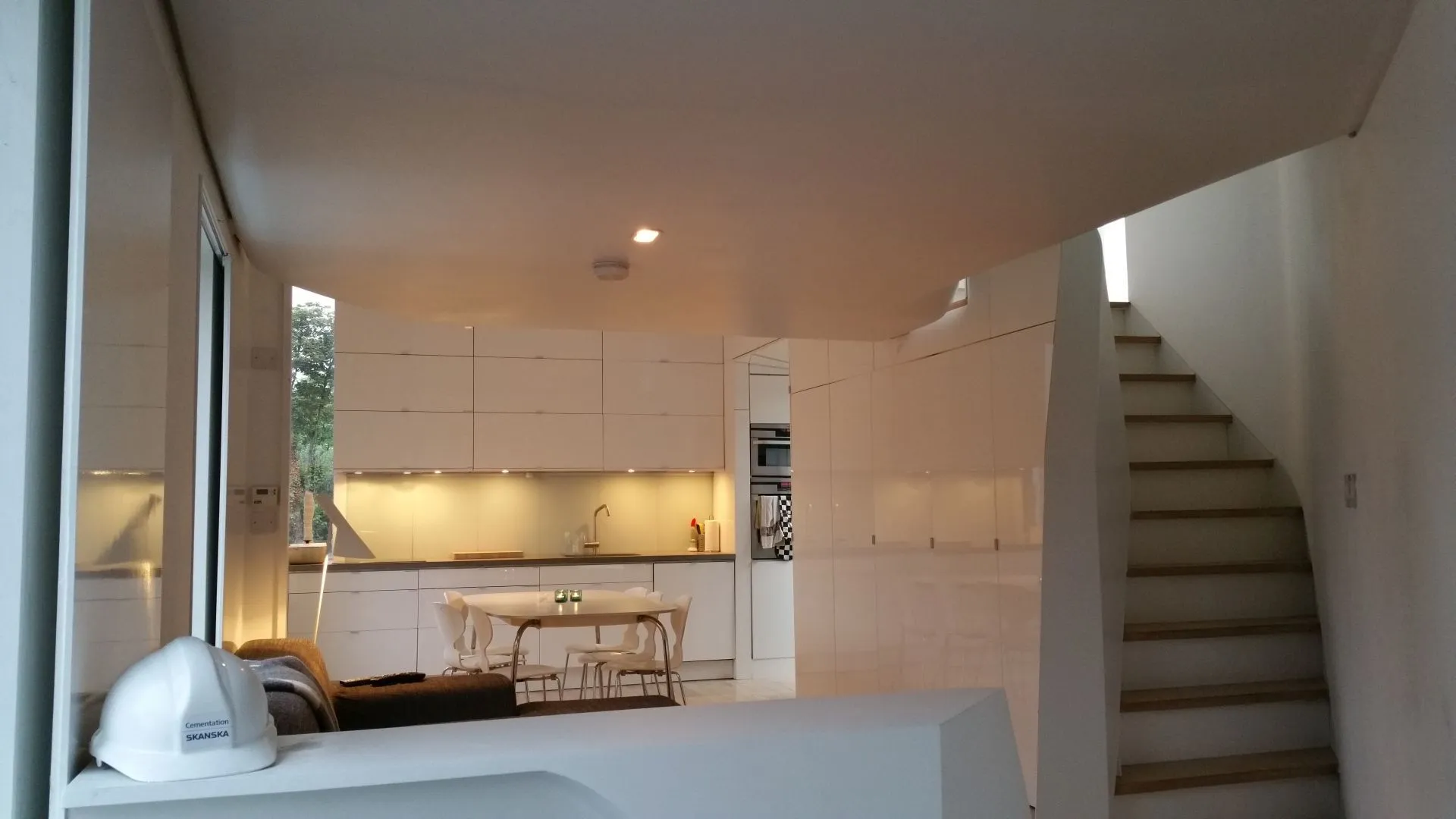

The interior is extremely compact and highly integrated, with bespoke storage and fitted elements taking inspiration from yacht design. Every available surface is used carefully, turning the small maisonette into an intensified domestic landscape where structure, furniture, storage and circulation become part of the same architectural system.

Nested House V1.12 explores how digital modelling, CNC fabrication, laminated plywood construction and sectional spatial organisation can transform a constrained urban dwelling into a precise and inhabitable architectural insertion.
